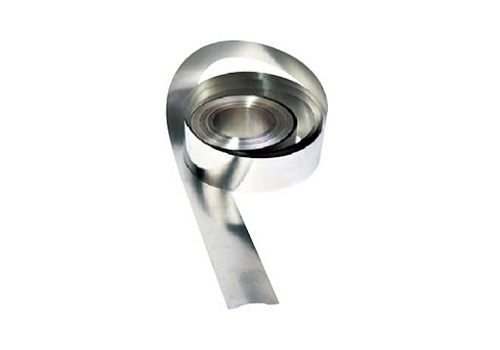

Iron-based nanocrystalline ribbon

Iron-based nanocrystalline ribbon is an ultrafine nanocrystalline composite structure that possesses Ultra-high permeability, high saturation magnetic flux density, extremely low losses, and excellent temperature stability . It can meet Medium- and high-frequency, high-efficiency, compact, and highly reliable electronic devices the demand. Especially as a high-performance Economical Soft Magnetic Materials It can replace silicon steel, permalloy, and ferrite, and is widely used in a variety of high-end electronic and industrial control products.
Iron-based nanocrystalline alloy is a new type of high‑efficiency soft magnetic material. It is produced by rapidly quenching molten metal to form an amorphous ribbon, which is then subjected to precise heat treatment to precipitate nanoscale crystalline grains, resulting in a dual-phase microstructure of amorphous and nanocrystalline phases. This structure delivers superior magnetic properties and finds extensive applications in… In the fields of switching power supplies, high-frequency transformers, inductive components, current transformers, and sensors , which can significantly enhance device performance Response speed, conversion efficiency, and energy-saving performance 。

Features and Advantages
・It combines high permeability, high saturation magnetic flux density, low coercivity, and low losses, with overall performance far superior to that of conventional iron-based amorphous alloys, silicon steel, and certain permalloy alloys.
・It exhibits strong frequency adaptability, with low losses and high efficiency in the mid- to high-frequency range, making it suitable for a wide variety of applications.
・Costs are significantly lower than those of cobalt-based amorphous alloys, offering outstanding cost-effectiveness;
・Excellent thermal stability and reliable, stable performance, making it suitable for large-scale industrial applications.
Typical application areas
・High-frequency transformer and switching power supply transformer magnetic cores
・Common-mode inductors, EMI/EMC filter inductors
・Intermediate-frequency inverter inductor and reactor
・Current transformers, sensors, magnetic amplifiers
・Magnetic components for new energy, home appliances, industrial control power supplies, and various other applications

Factory price— Iron-based nanocrystalline ribbon

Item	Performance	Item	Performance
Magnetic saturation-induced current Intensity Bs(T)	1.56	Saturation magnetostriction coefficient (λs)	0.000027
Curie temperature Tc (°C)	400	Density ρ (g/cm³)	7.18
Crystallization temperature Tx (°C)	515	Resistivity δ (μΩ·cm)	130
Hardness Hv	960	Coercivity Hc (A/m)	<4

What you want—customized iron-based nanocrystalline ribbon Click to consult

Any high-quality specification of Iron-based nanocrystalline Strip material — Support Customization Click to consult

Frequently Asked Questions

Q: What information do I need to provide during the consultation?
A: To provide you with the most accurate response, we recommend that you include relevant product information when you inquire, such as: Model, dimensions, technical specifications, required quantity, etc. 。
Q: How long does it take to produce a sample?
Answer: The preparation time for standard samples is typically 1–3 business days 。
Q: What is the product’s lead time?
A: For standard in-stock items, the shipping time is approximately 3–10 days . If you require a custom design, we will, upon confirmation of your requirements, provide you with… Arrange production as soon as possible. and synchronize the specific production schedule with you.
Q: What is the minimum order quantity (MOQ)?
A: We support flexible ordering with no strict minimum order quantity. Specific terms can be negotiated based on your product dimensions and design, and we are committed to meeting a wide range of purchasing needs.
Q: What payment methods are supported?
A: We accept a variety of international payment methods, including Telegraphic Transfer (T/T), PayPal, Letter of Credit (L/C), Documents against Acceptance (D/A), and Documents against Payment (D/P) Different regions may have different procedures; please feel free to inquire for more information.
Q: If you have any other questions, how should you get in touch?
Answer: You can through Email, phone, or online message Please feel free to contact us, and we will respond to your inquiry as soon as possible.
Q: Select Good friend What is the reason?
Answer: (1) Our products enjoy a strong reputation in both domestic and international markets, Quality is widely recognized. ；
(2) Possessing More than 8 years With extensive export experience and a deep understanding of international customer needs, we provide professional services.
(3) Commitment On-time delivery , ensuring an efficient and reliable supply chain.
