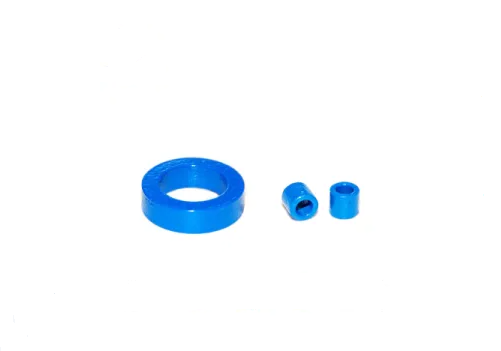

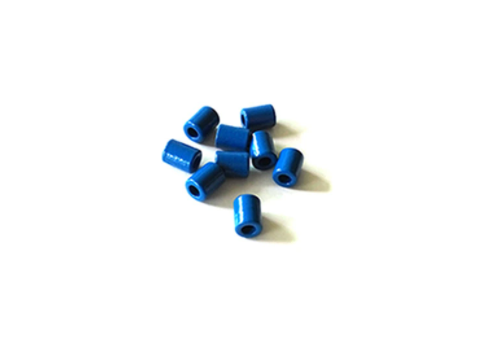

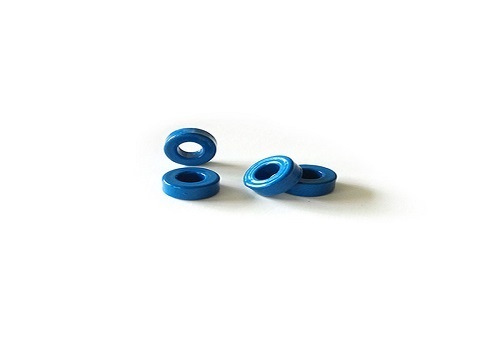

Large Inductance Amorphous Beads

Payment Type: L/C,T/T Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP Min. Order: 1000 Piece/Pieces Transportation: Ocean,Land,Air Port: Qingdao,Tianjing,Shanghai

Categories：

Bead

+8613223998689 / +8613837210806

Product Attributes

Brand: Kayo

Place Of Origin: China

Supply Ability & Additional Information

Packaging: Customized

Productivity: 5000000pieces/months

Transportation: Ocean,Land,Air

Place of Origin: Anyang,Henan,China

Supply Ability: 5000000pieces/months

Certificate: ISO9001 SGS

HS Code: 410596117T

Port: Qingdao,Tianjing,Shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Customized

Versatile Magnetic Core

New design Iron Core has a very large inductance when the current is zero, which can effectively block the reverse reset current generated by the diode. This material can be saturated at a very small current that can be widely used to the switching power,Frequency Converter Iron Core and so on.

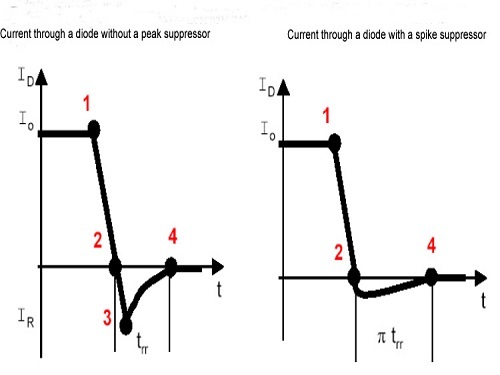

The comparsion diagram of having a peak suppressor and not

Comparison of three iron core

Item	Nano High Saturation Iron Core	Permalloy iron core	Silicon Steel Core
Magnetic saturation induction intensity Bs(T)	1.25	0.76	2.03
Curie temperature Tc(℃）	570	400	740
Density ρ(g/cm3)	7.2	8.85	7.65
Stacking factor	≥0.75	0.9	0.95
Initial permeability(μ0)	40000-80000	>80000	1000
Thickness(μm)	0.025-0.035	0.1	0.3
Maximum permeability(μ)	>250000	>200000	40000

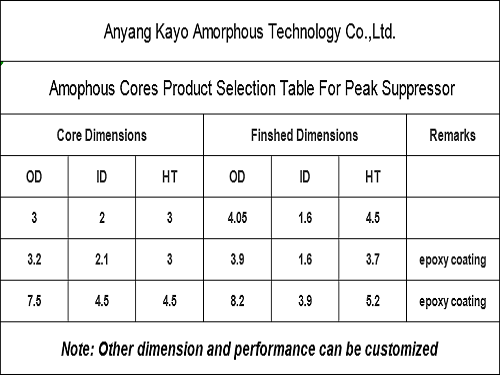

Specification of High Property Iron Core

FAQ

1.Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please supply the following items,such as the type, dimensions, sizes, quantities and so on.

2.Q: How long does it take to prepare the sample ?
A: It takes 1-3days to prepare the sample.

3.Q: What about the delivery time of our products?
A: If we have stock,it will take 3-10days. If you need your designs,, we will produce it as soon as possible.

4.Q: What is your MOQ?
A: All orders are aceptable acording to the different size and design.

5.Q: How to pay you?
A: We can acceot the T/T, PayPal, L/C,D/A,D/P and so on.
Different areas may exist some differences.

6.Q: If I have any questions, where can I get the answer?
A: Please feel free to contact us any time.

7.Q:Why do we choose you?
A:(1) Our products are well known in domestic and overseas markets .
(2) Above 8 years export experience make us know how to satisfy you.
(3) Delivery on time.

Product Categories : Amorphous And Nano Iron Core > Bead

Company Overview

Anyang Kayo amorphous Technology Co., Ltd., founded in 2011 with a registered capital of RMB 5 million that is a technology-based manufacture. We specialize in the production of nano&amorphous iron core and amorphous&nano ribbon, CT, electric component(including comon mode choke coil, filter inductance, high frequency transformer,etc.).Our main products are amorphous and nanocrystalline iron cores which are widely used in communication, house appliances, electric power, automobile, new energy and other fields.
