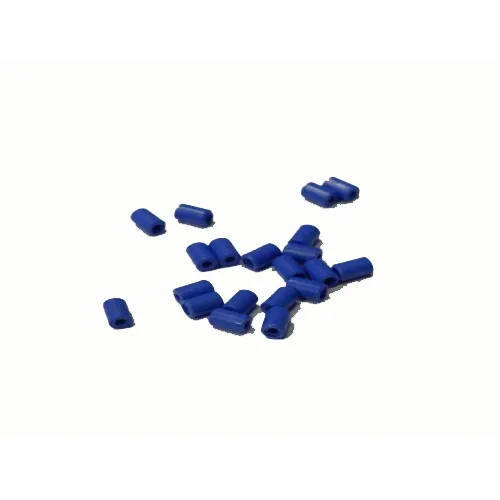

High Frequency Noise Filter Bead1

Payment Type: L/C,T/T,Paypal Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP Min. Order: 1000 Piece/Pieces Transportation: Ocean,Air,Land Port: Qingdao,Tianjin,Shanghai

Categories：

Bead

+8613223998689 / +8613837210806

sales@kayo-tech.cn

Get A Quote

Product Details

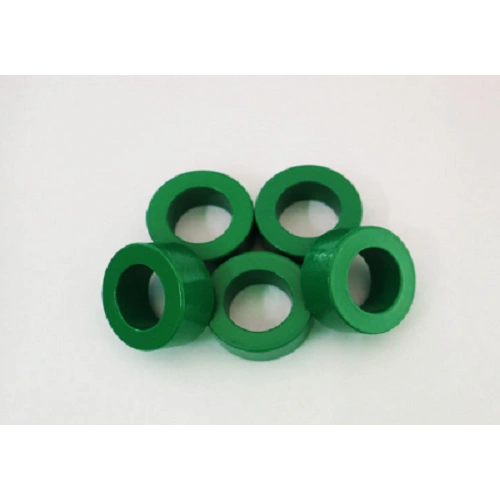

High Saturation Iron Core

Versatile Magnetic Core have a very large inductance when the current is zero, which can effectively block the reverse reset current generated by the diode. This material can be saturated at a very small current that can be widely used to the switching power,frequency converter and so on.

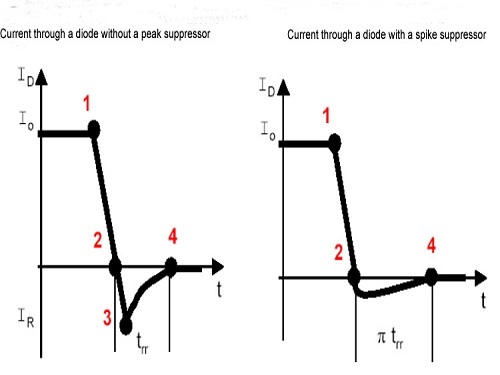

The comparsion diagram of having a peak suppressor and not

Comparison of three High Property Iron Core

Item	Nano crystalline Iron Core	Permalloy iron core	Silicon Steel Core
Magnetic saturation induction intensity Bs(T)	1.25	0.76	2.03
Curie temperature Tc(℃）	570	400	740
Density ρ(g/cm3)	7.2	8.85	7.65
Stacking factor	≥0.75	0.9	0.95
Initial permeability(μ0)	40000-80000	>80000	1000
Thickness(μm)	0.025-0.035	0.1	0.3
Maximum permeability(μ)	>250000	>200000	40000

Specification of new design iron core

FAQ

1.Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please supply the following items,such as the type, dimensions, sizes, quantities and so on.

2.Q: How long does it take to prepare the sample ?
A: It takes 1-3days to prepare the sample.

3.Q: What about the delivery time of our products?
A: If we have stock,it will take 3-10days. If you need your designs,, we will produce it as soon as possible.

4.Q: What is your MOQ?
A: All orders are aceptable acording to the different size and design.

5.Q: How to pay you?
A: We can acceot the T/T, PayPal, L/C,D/A,D/P and so on.
Different areas may exist some differences.

6.Q: If I have any questions, where can I get the answer?
A: Please feel free to contact us any time.

7.Q:Why do we choose you?
A:(1) Our products are well known in domestic and overseas markets .
(2) Above 8 years export experience make us know how to satisfy you.
(3) Delivery on time.

Product Categories : Amorphous And Nano Iron Core > Bead

Key words:

Products

None

Large Inductance Amorphous Beads

None

Large Inductance Amorphous Beads

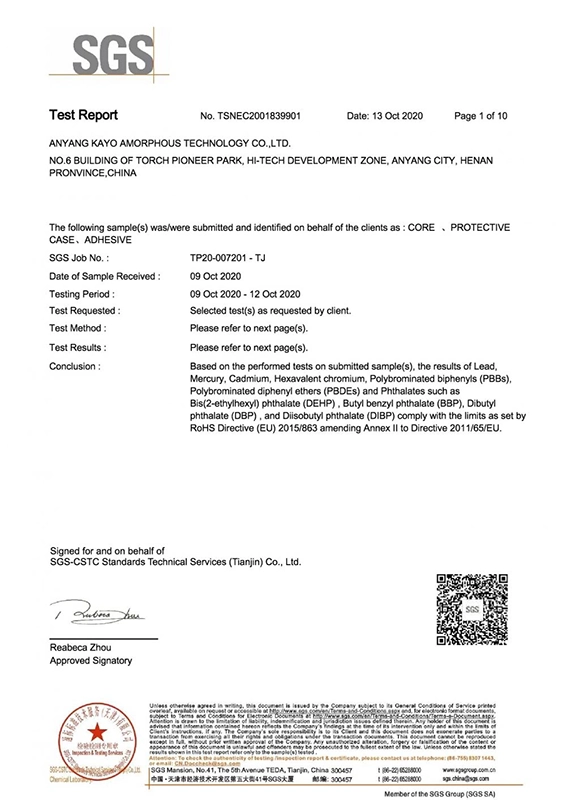

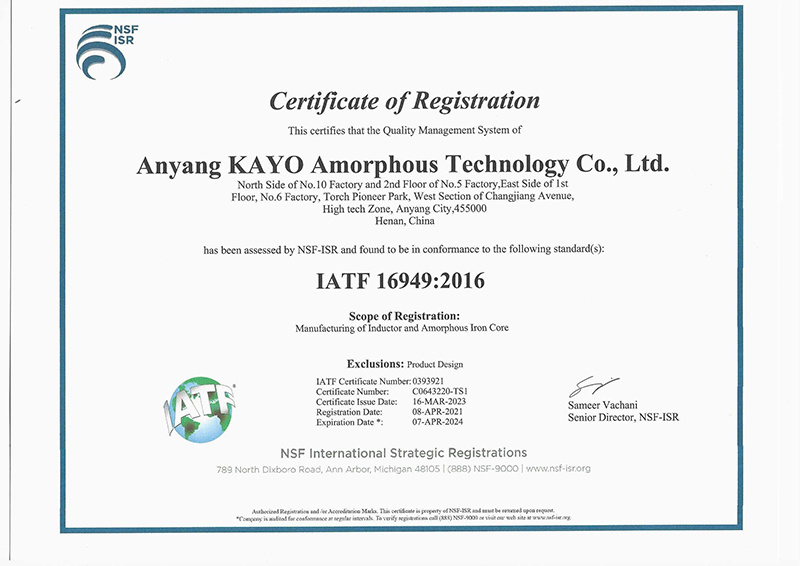

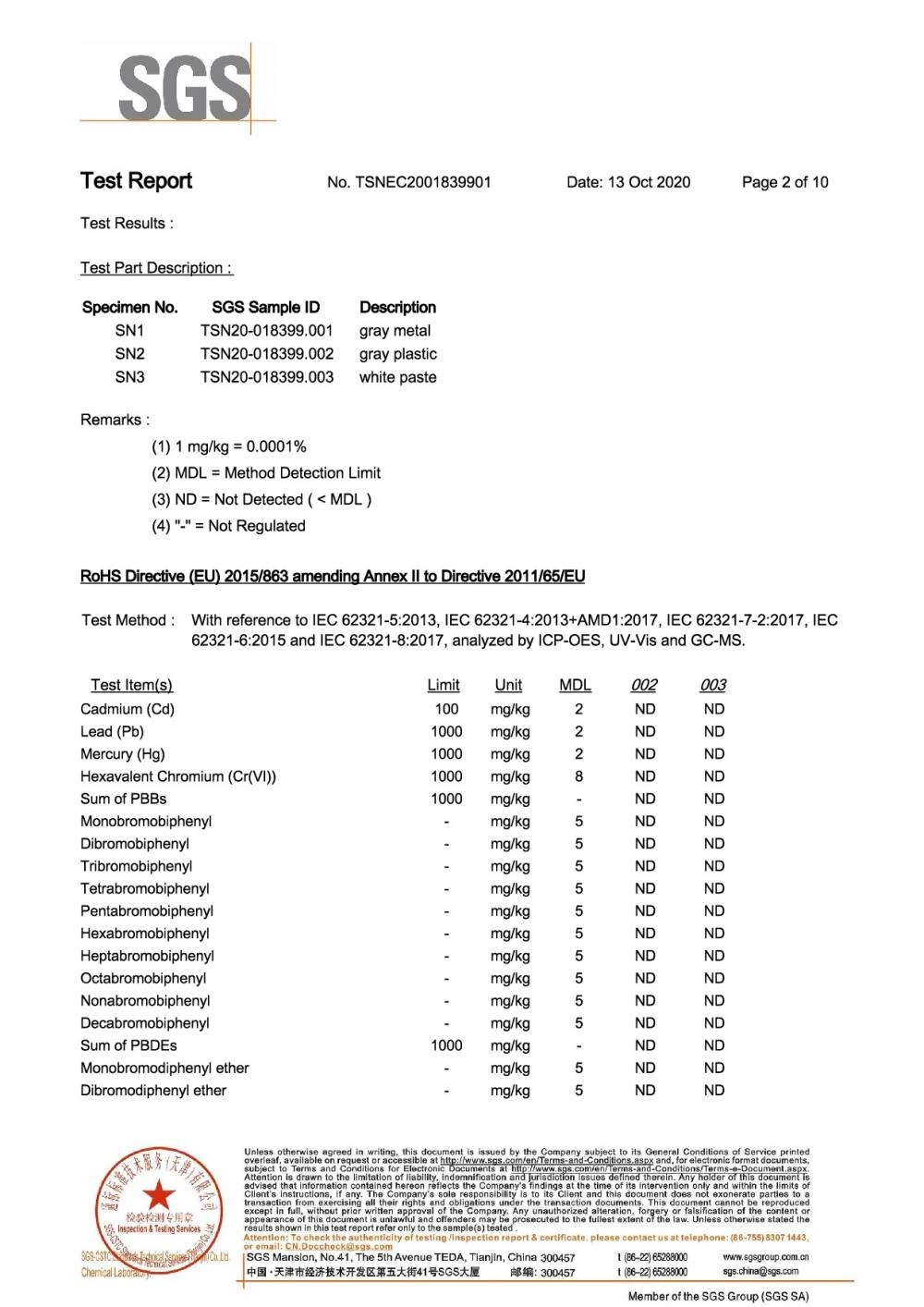

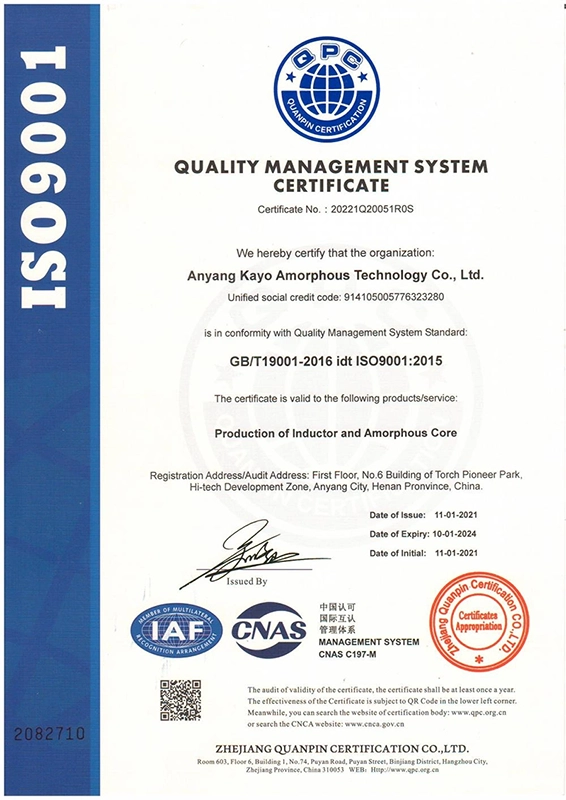

Certification
