High Performance Filter Inductance Core

Payment Type:L/C,T/T,Others Incoterm:FOB,CFR,CIF,EXW,FCA,CPT,CIP,FAS Min. Order:1000 Piece/Pieces Transportation:Ocean,Air,Land Port:Qingdao,Tianjin,Shanghai

Categories：

Amorphous lron Core For Car Audio

+8613223998689 / +8613837210806

Product Attributes

Brand: Kayoa

Place Of Origin: China

Size: as your request

Color: as your request

Specification: as your request

Logo: as your request

Case: as your request

Package: carton

Application 1: Choke coil for car audio

Application 2: PFC calibration inductance

Application 3: DC/DC converter filter coil

Supply Ability & Additional Information

Packaging: Customized

Productivity: 5000000pieces/months

Transportation: Ocean,Air,Land

Place of Origin: Anyang,Henan,China

Supply Ability: 5000000piece/months

Certificate: ISO9001,GS

HS Code: 410596117T

Port: Qingdao,Tianjin,Shanghai

Payment Type: L/C,T/T,Others

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP,FAS

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Customized

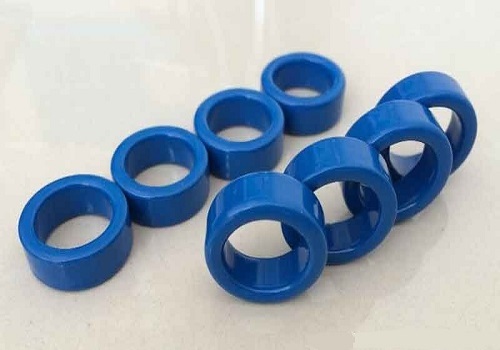

Good Iron-based amorphous Filter Inductance Cores

Iron-based amorphous filter inductor core has excellent frequency characteristic,ac/dc superposition and low core losses, at the same time, its permeability can control the change over a very wide range (120 to 1200 mu), resistant to different range of bias current ampere turn (partial) magnetic field.It's suitable for all kinds of high frequency, ac/dc superposition of inductance device application.The performance is superior to silicon iron nickel and iron Aluminum Magnetic Powder Core.

Application

Choke coil for car audio

PFC calibration inductance

Differential mode filter and smooth output filter

DC/DC converter filter coil

Conventional filter coil and adapter filter coil

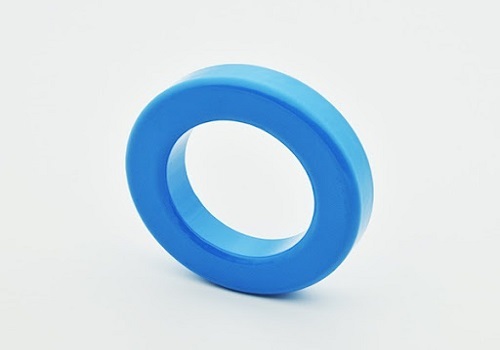

High Performance Filter Inductance core

Item	Index	Item	Index
Magnetic saturation induction intensity Bs(T)	1.56	Hardness Hv	960
Crystallization temperature Tx(℃)	515	Curie temperature Tc(℃)	400
Saturation magnetostriction coefficient(λs)	0.000027	Resistivity δ(μΩ▪cm)	130

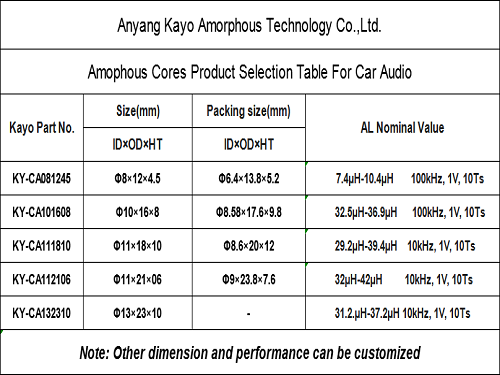

Specification of cheap price filter inductance core

FAQ

1. Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please supply the following items,such as the type, dimensions, sizes, quantities and so on.

2.Q: How long does it take to prepare the sample ?
A: It takes 1-3days to prepare the sample.

3.Q: What about the delivery time of our products?
A: If we have stock,it will take 3-10days. If you need your designs,, we will produce it as soon as possible.

4.Q: What is your MOQ?
A: All orders are aceptable acording to the different size and design.

5.Q: How to pay you?
A: We can acceot the T/T, PayPal, L/C,D/A,D/P and so on.
Different areas may exist some differences.

6.Q: If I have any questions, where can I get the answer?
A: Please feel free to contact us any time.

7.Q:Why do we choose you?
A:(1) Our products are well known in domestic and overseas markets .
(2) Above 8 years export experience make us know how to satisfy you.
(3) Delivery on time.

Product Categories : Amorphous And Nano Iron Core > Amorphous Iron Core For Car Audio
