Single Phase Electrictransformer Iron Cores

Single Phase Electrictransformer Iron Cores

Payment Type: L/C,T/T,Paypal Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP Min. Order: 1000 Piece/Pieces Transportation: Ocean,Land,Air Port: Qingdao,Tianjin,Shanghai

Categories：

Nano CT lron Core

+8613223998689 / +8613837210806

Product Attributes

Brand: Kayo

Place Of Origin: China

Supply Ability & Additional Information

Packaging: Customized

Productivity: 5000000pieces per months

Transportation: Ocean,Land,Air

Place of Origin: Anyang, Henan,China

Supply Ability: 5000000 pieces per months

Certificate: ISO9001 SGS

HS Code: 410596117T

Port: Qingdao,Tianjin,Shanghai

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Customized

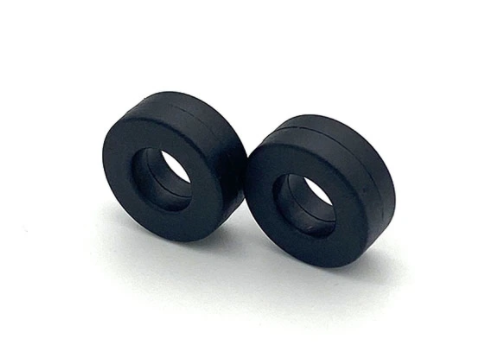

Good Current Transformer Iron Core

Nano-crystalline Current Tansformer Iron cores have high permeability and low cost which is ideal material for Current Transformer at present.It is suitable for the development trend of small, light and efficient components in the field of power electronics and electronic information.So it can be widely used in precision current transformer, zero sequence current transformer, medium and High Frequency Transformer and other electrical equipment.

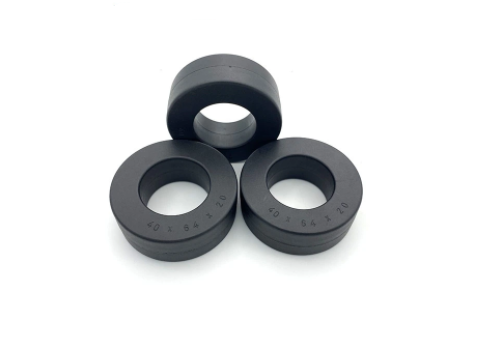

High Performance Ct core

Item	Performance	Item	Performance
Magnetic saturation induction intensity Bs(T)	1.25	Saturation magnetostriction coefficient(λs)	0.000002
Curie temperature Tc(℃）	550	Density ρ(g/cm3)	7.2
Crystallization temperature Tx(℃）	700	Resistivity δ(μΩ▪cm)	130
Hardness Hv	880	Thickness(μm)	28-35
Initial permeability(μ0)	＞120000	Stacking factor	≥0.75

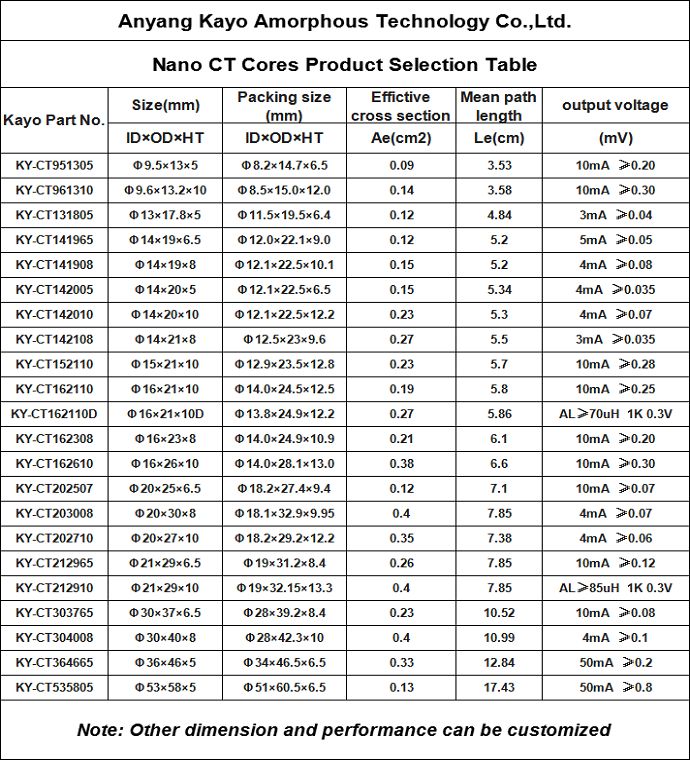

Specification of multiduty CT core

FAQ

1.Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please supply the following items,such as the type, dimensions, sizes, quantities and so on.

2.Q: How long does it take to prepare the sample ?
A: It takes 1-3days to prepare the sample.

3.Q: What about the delivery time of our products?
A: If we have stock,it will take 3-10days. If you need your designs,, we will produce it as soon as possible.

4.Q: What is your MOQ?
A: All orders are aceptable acording to the different size and design.

5.Q: How to pay you?
A: We can acceot the T/T, PayPal, L/C,D/A,D/P and so on.
Different areas may exist some differences.

6.Q: If I have any questions, where can I get the answer?
A: Please feel free to contact us any time.

7.Q:Why do we choose you?
A:(1) Our products are well known in domestic and overseas markets .
(2) Above 8 years export experience make us know how to satisfy you.
(3) Delivery on time.

Product Categories : Amorphous And Nano Iron Core > Nano CT Iron Core

Key words:

Composite Core With Cap and Bobbin

Current Transformer Iron Core You Want

Composite Core With Cap and Bobbin

Current Transformer Iron Core You Want
