Nano Iron Core hot sales

Payment Type: L/C,T/T Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP Min. Order: 1000 Piece/Pieces Transportation: Ocean,Land,Air Port: Qingdao,Tianjing,Shanghai

Categories：

Nano CT lron Core

+8613223998689 / +8613837210806

Product Attributes

Brand: Kayo

Place Of Origin: China

Size: accept customization

Color: accept customization

Specification: accept customization

Logo: accept customization

Package: carton

Material: nanocrystalline magnetic

MOQ: 1000pcs

Application 1: frequency converter

Application 2: EMC filter

Feature: low loss

Supply Ability & Additional Information

Packaging: Customized

Productivity: 5000000pieces/months

Transportation: Ocean,Land,Air

Place of Origin: Anyang,Henan,China

Supply Ability: 5000000pieces/months

Certificate: ISO9001,SGS,IATF16949

HS Code: 410596117T

Port: Qingdao,Tianjing,Shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Customized

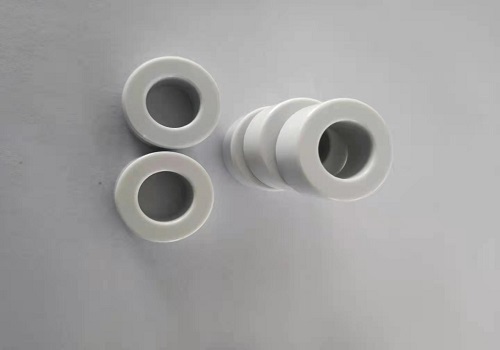

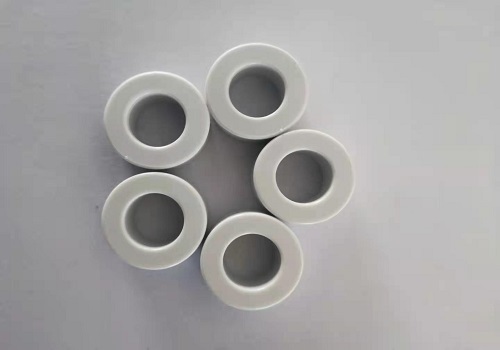

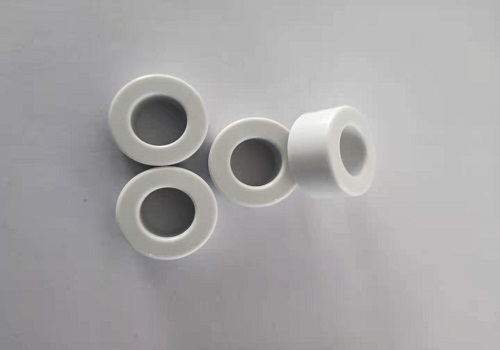

Nano Core For Smart Meter

The resistance DC component magnetic core has strong resistance DC component ability, wide current range, few additional circuits and devices,strong reliability and insensitive to interference.

The application of nano double core

Our company produces two kinds of resistance DC component magnetic cores: single core and composite core. The composite core adopts double core design, which has lower cost than cobalt based alloy. It has high permeability,low coercivity and loss,excellent performance on DC immue and temperature stability that can be widely used to the electronic watt-hour meter,resistance DC component transformer and electrical power system measurement.

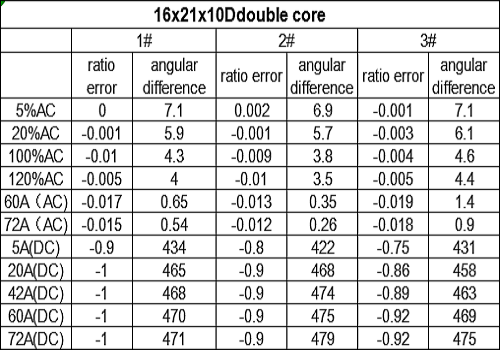

The specification of double Iron Core

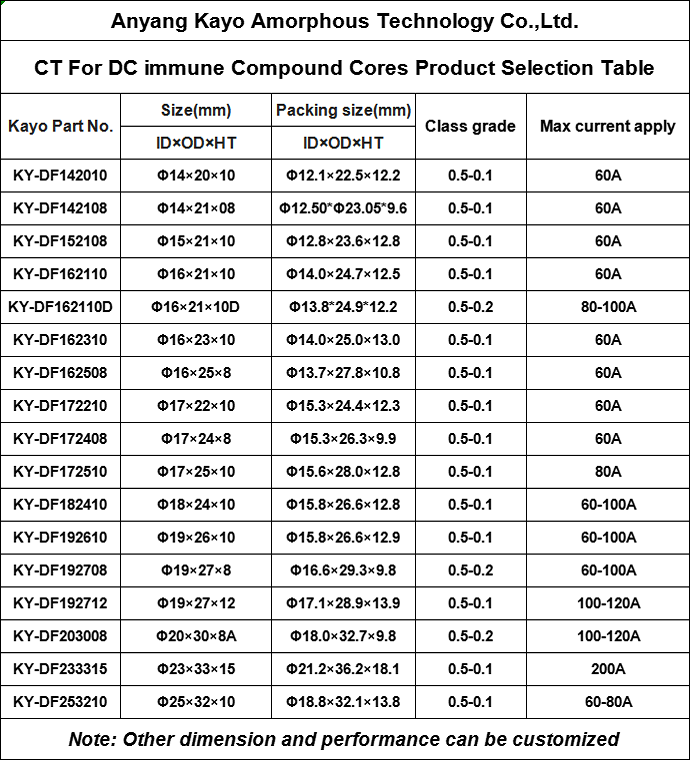

The data of common CT core

FAQ

1. Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please supply the following items,such as the type, dimensions, sizes, quantities and so on.

2.Q: How long does it take to prepare the sample ?
A: It takes 1-3days to prepare the sample.

3.Q: What about the delivery time of our products?
A: If we have stock,it will take 3-10days. If you need your designs,, we will produce it as soon as possible.

4.Q: What is your MOQ?
A: All orders are aceptable acording to the different size and design.

5.Q: How to pay you?
A: We can acceot the T/T, PayPal, L/C,D/A,D/P and so on.
Different areas may exist some differences.

6.Q: If I have any questions, where can I get the answer?
A: Please feel free to contact us any time.

7.Q:Why do we choose you?
A:(1) Our products are well known in domestic and overseas markets .
(2) Above 8 years export experience make us know how to satisfy you.
(3) Delivery on time.

Product Categories : Amorphous And Nano Iron Core > Nano CT Iron Core

Key words:

Amorphous And Nano Core For CT

Composite Core With Cap and Bobbin

Amorphous And Nano Core For CT

Composite Core With Cap and Bobbin
