Common Mode Choke Iron Core

Payment Type: L/C,T/T,ssss Incoterm: FOB,CFR,EXW,CIF,FCA,CPT,CIP Min. Order: 1000 Piece/Pieces Transportation: Ocean,Air,Land Port: Qingdao,Tianjing,Shanghai

Categories：

Nano CMClron Core

+8613223998689 / +8613837210806

Product Attributes

Brand: Kayo

Place Of Origin: China

Supply Ability & Additional Information

Packaging: Customized

Productivity: 5000000pieces/months

Transportation: Ocean,Air,Land

Place of Origin: Anyang,Henan,China

Supply Ability: 5000000pieces/months

Certificate: ISO9001 SGS

HS Code: 410596117T

Port: Qingdao,Tianjing,Shanghai

Payment Type: L/C,T/T,ssss

Incoterm: FOB,CFR,EXW,CIF,FCA,CPT,CIP

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Customized

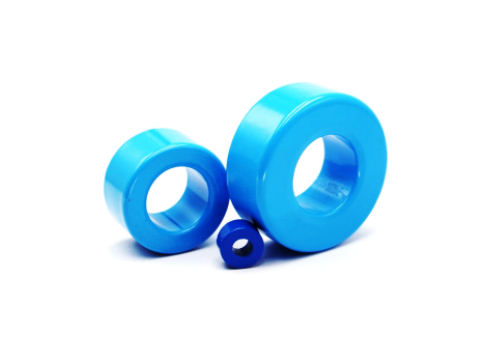

Nano CMC Iron Core

New Nano CMC Iron Core has high saturation magnetic induction that can reduce the volume of CMC,outstanding ability to resist unblanced current, excellent impedance and tamperature stability.So the Utility Cmc Core can be used to the inverter circuit ,frequency converter.UPS, switching power,EMC filter and new energy.

Performance of nano CMC iron core

Item	Index
Magnetic saturation induction intensity Bs(T)	1.2
Curie temperature Tc(℃)	570
Stacking factor(k)	≥0.8
Initial permeability	85000
Permeability μ(10kHz)	80000
Permeability μ(100kHz)	20000
Resistivity δ(μΩ▪cm)	≥130
Density ρ(g/cm3)	7.2

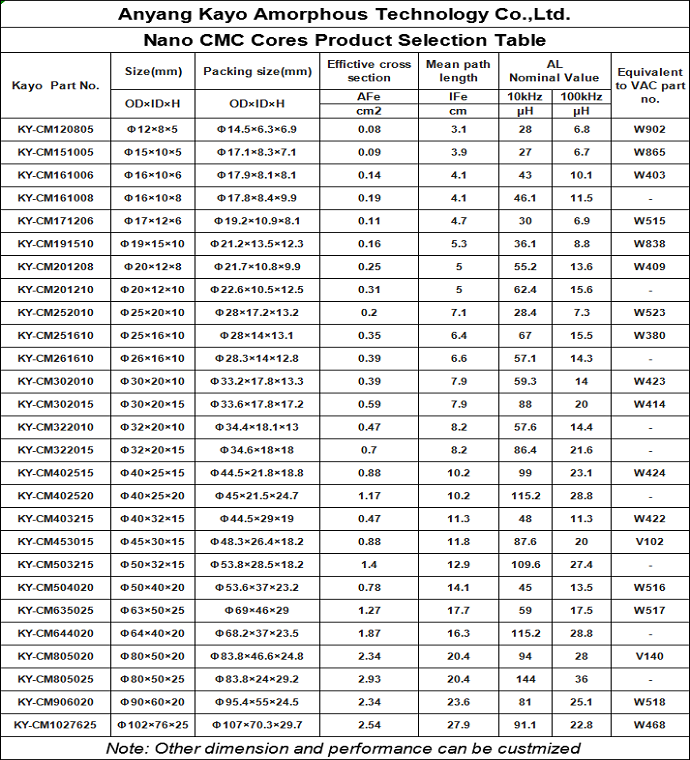

Specification of Best Cmc Core

FAQ

1. Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please supply the following items,such as the type, dimensions, sizes, quantities and so on.

2.Q: How long does it take to prepare the sample ?
A: It takes 1-3days to prepare the sample.

3.Q: What about the delivery time of our products?
A: If we have stock,it will take 3-10days. If you need your designs,, we will produce it as soon as possible.

4.Q: What is your MOQ?
A: All orders are aceptable acording to the different size and design.

5.Q: How to pay you?
A: We can acceot the T/T, PayPal, L/C,D/A,D/P and so on.
Different areas may exist some differences.

6.Q: If I have any questions, where can I get the answer?
A: Please feel free to contact us any time.

7.Q:Why do we choose you?
A:(1) Our products are well known in domestic and overseas markets .
(2) Above 8 years export experience make us know how to satisfy you.
(3) Delivery on time.

Product Categories : Amorphous And Nano Iron Core > Nano CMC Iron Core

Key words:

Nano-crystalline Common Mode Choke Cores

Customized CMC Iron Core

Nano-crystalline Common Mode Choke Cores

Customized CMC Iron Core
